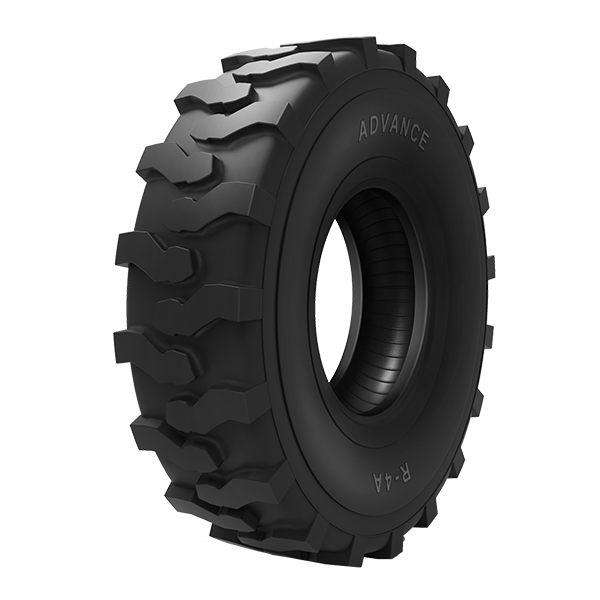

BJR-4A Agricultural Tire
Wide tread blocks. Low tread-block angle.
For faster pricing, include target market, quantity, and operating conditions in your inquiry.
Product Description
Large block, small block angle,
Specifications
Available sizes & load ratings
| Size | Ply Rating | Tire Type | Section Width (mm) | Overall Diameter (mm) | Speed Rating | Max Speed (km/h) | Inflation Pressure (kPa) | Max Load (kg) | Rim | Tread Depth (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 17.5L-24 | 12 | TL | 445 | 1241 | A8 | 40 | 260 | 2995 | 15 | 25.4 |
| 16.9-24 | 12 | TL | 429 | 1309 | A8 | 40 | 260 | 3250 | 15 | 25.4 |
| 21L-24 | 16 | TL | 533 | 1378 | A8 | 40 | 280 | 4500 | 18 | 31.8 |
| 19.5L-24 | 14 | TL | 495 | 1314 | A8 | 40 | 260 | 3700 | 17 | 28.6 |
| 14.9-24 | 12 | TL | 378 | 1241 | A8 | 40 | 290 | 2900 | 13 | 25.5 |
| 14.9-24 | 8 | TL | 378 | 1241 | A8 | 40 | 210 | 2300 | 13 | 25.5 |
All sizes available for distributor / project orders. MOQ 1×40HQ container per model. Mixed sizes within the same product family supported.
Applications
Where this tire works
- Tractor — drive
- Tractor — steering
- Combine harvester
- Trailer / implement
Certifications
Compliance scope
- ECE-R75
- INMETRO
- GCC
Per-batch certification scope confirmed in the formal quotation. Additional regional standards available on request.
