BJR-3 Agricultural Tire — agricultural tire | BOJUN
BOJUN Agricultural 9.5-24 R-3

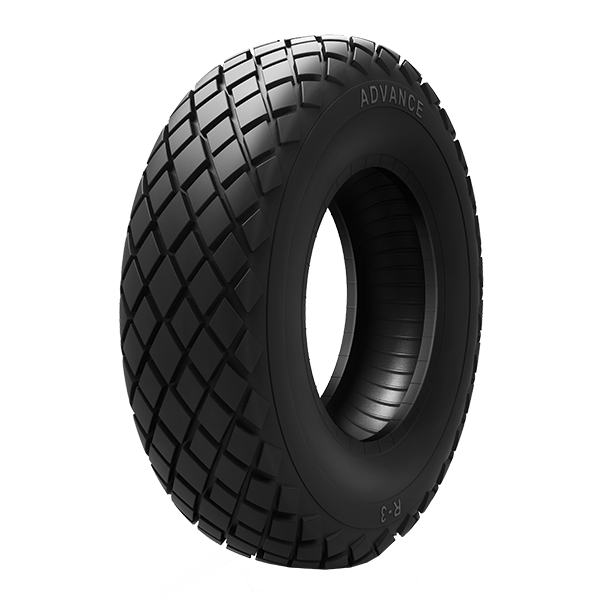

BJR-3 Agricultural Tire

Shallow tread depth. Strong drive performance.

Request Quote service@bojuncn.com WhatsApp

For faster pricing, include target market, quantity, and operating conditions in your inquiry.

Product Description

The pattern is shallow,
achieving sound driving performance.

Specifications

Available sizes & load ratings

Size Ply Rating Tire Type Section Width (mm) Overall Diameter (mm) Speed Rating Max Speed (km/h) Inflation Pressure (kPa) Max Load (kg) Rim Tread Depth (mm)
9.5-24 4 TT 240 1025 A6/*A8 30/*40 140/*140 740/*670 8 11
9.5-24 6 TT 240 1025 A6/*A8 30/*40 210/*210 940/*850 8 11
14.9-24 6 TL 386 1255 A8 40 140 1360 13 20
14.9-24 8 TL 386 1255 A8 40 180 1600 13 20
14.9-24 10 TT 386 1255 A8 40 220 1800 13 20
14.9-24 12 TT 386 1255 A8 40 260 2000 13 20
16.9-28 6 TL 429 1410 A8 40 120 1650 W15L 21
16.9-28 8 TL 429 1410 A8 40 170 1950 W15L 21
16.9-28 10 TL 430 1410 A8 40 190 2120 15 21
16.9-28 12 TL 430 1410 A8 40 220 2430 15 21
16.9-30 6 TL 429 1461 A8 40 120 1700 W15L 21
16.9-30 8 TL 429 1461 A8 40 170 2000 W15L 21
16.9-30 10 TL 430 1460 A8 40 190 2240 15 21
16.9-30 12 TL 430 1460 A8 40 230 2500 15 21
18.4-16.1 6 TL 467 1113 A8 40 110 1150 W16C 24
18.4-16.1 8 TL 467 1113 A8 40 140 1320 W16C 24

All sizes available for distributor / project orders. MOQ 1×40HQ container per model. Mixed sizes within the same product family supported.

Applications

Where this tire works

  • Tractor — drive
  • Tractor — steering
  • Combine harvester
  • Trailer / implement

Certifications

Compliance scope

  • ECE-R75
  • INMETRO
  • GCC

Per-batch certification scope confirmed in the formal quotation. Additional regional standards available on request.

Recommended in these markets

Where buyers from these regions source this product

Africa Latin America Southeast Asia
