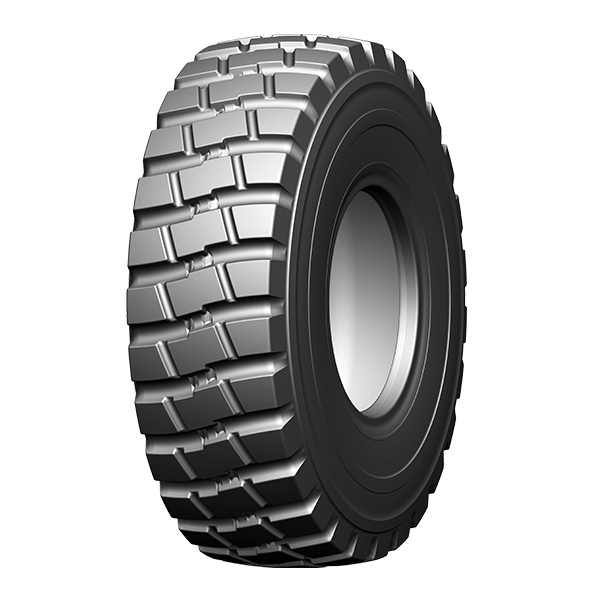

BJGLR02 OTR Tire
For faster pricing, include target market, quantity, and operating conditions in your inquiry.
Product Description
1. The optimized design and formula of the steel belt structure guarantee good cutting resistance;
2. The optimized design and formula of grounding shape ensure high wear resistance.
2. The optimized design and formula of grounding shape ensure high wear resistance.
Specifications
Available sizes & load ratings
| Size | Ply Rating | Load Index | Speed Rating | Measuring Rim | Approved Rims | Section Width (mm) | Overall Diameter (mm) | Tread Depth (mm) | Max Load (kg) | Inflation Pressure (kPa) | Valve Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 26.5R25 | ★ | 202 | A2 | / | 22.00/3.0 | 660 | 1730 | 36 | 15000 | 500 | / |
| 26.5R25 | ★★ | 193 | B | / | 22.00/3.0 | 660 | 1730 | 36 | 11500 | 525 | / |
| 23.5R25 | ★ | 195 | A2 | / | 19.50/2.0 | 610 | 1588 | 35 | 12150 | 500 | / |
| 23.5R25 | ★★ | 185 | B | / | 19.50/2.0 | 610 | 1588 | 35 | 9250 | 525 | / |
| 20.5R25 | ★ | 186 | A2 | / | 17.00/2.0 | 508 | 1460 | 27 | 9500 | 500 | / |
All sizes available for distributor / project orders. MOQ 1×40HQ container per model. Mixed sizes within the same product family supported.
Applications
Where this tire works
- Mining
- Quarry
- Loader / dozer
- Heavy earthmoving
Certifications
Compliance scope
- DOT
- GCC
- INMETRO
- CCC
Per-batch certification scope confirmed in the formal quotation. Additional regional standards available on request.
