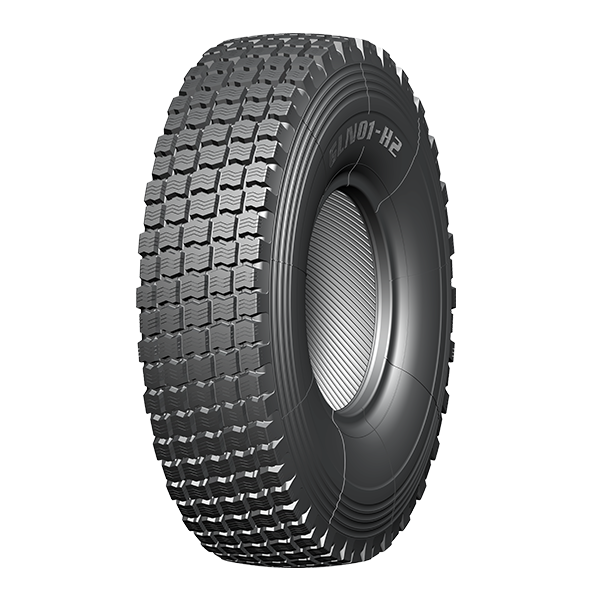

BJGLN01 OTR Tire
For faster pricing, include target market, quantity, and operating conditions in your inquiry.
Product Description
service life of the tire.
Specifications
Available sizes & load ratings
| Size | Ply Rating | Load Index | Speed Rating | Measuring Rim | Approved Rims | Section Width (mm) | Overall Diameter (mm) | Tread Depth (mm) | Max Load (kg) | Inflation Pressure (kPa) | Valve Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 17.5R25 | ★ | 153 | A8 | / | 14.00/1.5 | 435 | 1330 | 27 | 3650 | 300 | / |
| 17.5R25 | ★★ | 182 | A2 | / | 14.00/1.5 | 435 | 1330 | 27 | 8500 | 650 | / |
| 20.5R25 | ★ | 186 | A2 | 17.00/2.0 | 510 | 1465 | 27 | 9500 | 500 | ||
| 20.5R25 | ★★ | 177 | B | 17.00/2.0 | 510 | 1465 | 27 | 7300 | 525 | ||
| 23.5R25 | ★ | 195 | A2 | / | 19.50/2.0 | 600 | 1595 | 34 | 12150 | 500 | / |
| 23.5R25 | ★★ | 185 | B | / | 19.50/2.0 | 600 | 1595 | 34 | 9250 | 525 | / |
| 405/70R18 | 20PR | 153 | A2 | / | 13*18 | 400 | 1020 | 20 | 3650 | 375 | / |
| 405/70R18 | 20PR | 141 | B | / | 13*18 | 400 | 1020 | 20 | 2575 | 375 | / |
| 405/70R20 | 20PR | 155 | A2 | / | 13*20 | 400 | 1070 | 20 | 3875 | 375 | / |
| 405/70R20 | 20PR | 143 | B | / | 13*20 | 400 | 1070 | 20 | 2725 | 375 | / |
All sizes available for distributor / project orders. MOQ 1×40HQ container per model. Mixed sizes within the same product family supported.
Applications
Where this tire works
- Mining
- Quarry
- Loader / dozer
- Heavy earthmoving
Certifications
Compliance scope
- DOT
- GCC
- INMETRO
- CCC
Per-batch certification scope confirmed in the formal quotation. Additional regional standards available on request.
