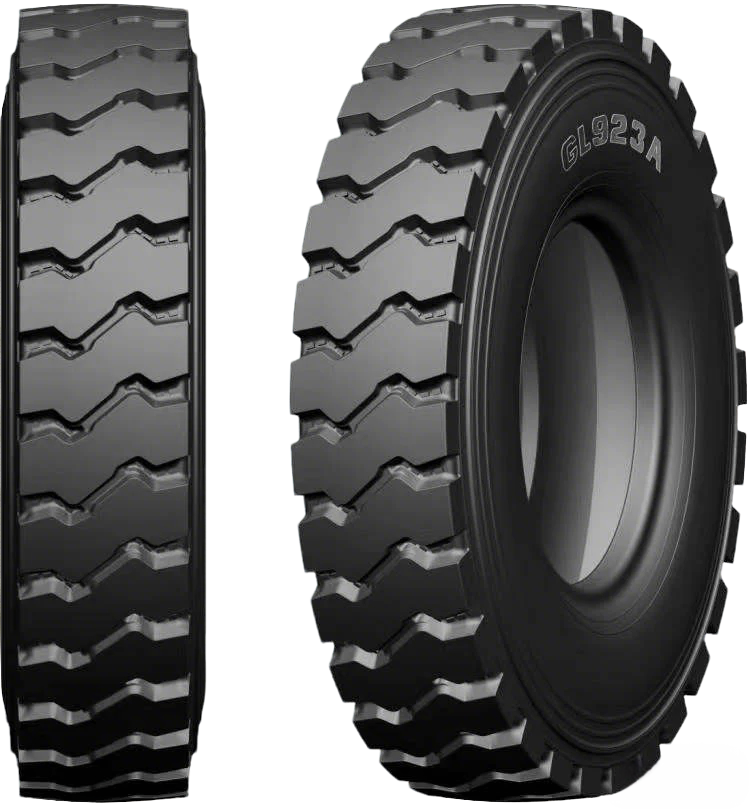

BJGL923A Agricultural Tire 12.00R20
Impact resistance. Cut resistance.
For faster pricing, include target market, quantity, and operating conditions in your inquiry.
Product Description
● Thick and strong pattern designing makes tire stronger grip under mining condition
● Deeper pattern makes tire longer milage
● Extra deep undertread compound makes tire belt and carcass get optimum protection when the tire is running under mining condition
● Special designed stone rejector at shoulder and thickened sidewall designing can effectively prevent stone from inserting between the sidewalls when dual tires are applied, so as to provide optimum protection
● Superstrong chafer with design patent provides a tire optimum carrying capacity and resistance to blow out
Specifications
Available sizes & load ratings
| Size | Ply Rating | Load Index | Speed Rating | Measuring Rim | Approved Rims | Section Width (mm) | Overall Diameter (mm) | Tread Depth (mm) | Max Load (kg) | Inflation Pressure (kPa) | Valve Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12.00R20 | 20PR | 156/153 | E | 8.5 | 8.50V,9.0 | 315 | 1145 | 25 | S4000、D3650 | 900 | DG09C |
| 12.00R20 | 18PR | 154/151 | F | 8.5 | 8.50V,9.0 | 315 | 1145 | 25 | S3750、D3450 | 830 | DG09C |
| 11.00R20 | 18PR | 152/149 | F | 8 | 8.00V,8.5 | 293 | 1105 | 25 | S3550、D3250 | 930 | DG09C |
All sizes available for distributor / project orders. MOQ 1×40HQ container per model. Mixed sizes within the same product family supported.
Applications
Where this tire works
- Tractor — drive
- Tractor — steering
- Combine harvester
- Trailer / implement
Certifications
Compliance scope
- ECE-R75
- INMETRO
- GCC
Per-batch certification scope confirmed in the formal quotation. Additional regional standards available on request.
