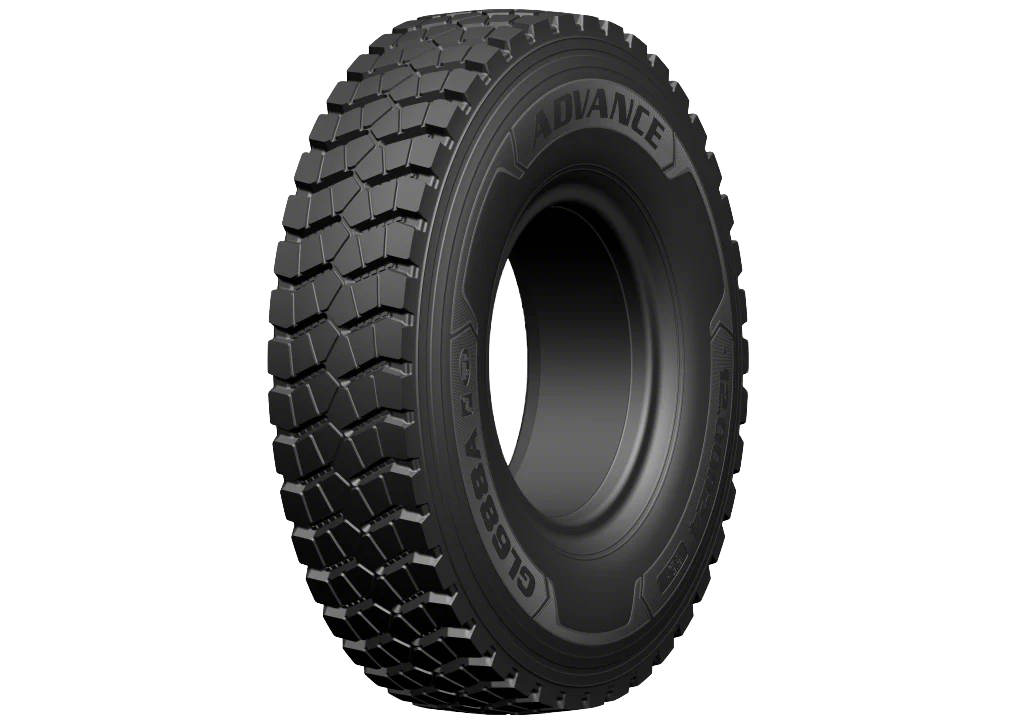

BJGL688A Trailer Tire 125
Premium wear resistance. High load capacity. Powerful drive.
For faster pricing, include target market, quantity, and operating conditions in your inquiry.
Specifications
Available sizes & load ratings
| Size | Ply Rating | Load Index | Speed Rating | Measuring Rim | Approved Rims | Section Width (mm) | Overall Diameter (mm) | Tread Depth (mm) | Max Load (kg) | Inflation Pressure (kPa) | Valve Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 18PR | 149/146 | L | 8.25 | 7.50 | 279 | 1054 | 17 | S3250、D3000 | 930 | DR07 |
| 12.00R20 | 20PR | 156/153 | J | 8.50 | 8.50V,9.0 | 315 | 1125 | 18 | S4000、D3650 | 900 | DG09C |
| 13R22.5 | 20PR | 156/153 | J | 9.75 | 9.00 | 320 | 1124 | 18 | S4000、D3650 | 930 | DR08 |
| 12R22.5 | 18PR | 152/149 | L | 9.00 | 8.25 | 300 | 1085 | 18 | S3550、D3250 | 930 | DR08 |
All sizes available for distributor / project orders. MOQ 1×40HQ container per model. Mixed sizes within the same product family supported.
Applications
Where this tire works
- Long-haul trailer
- Drop-deck
- Lowboy
- Container trailer
Certifications
Compliance scope
- DOT
- ECE-R54
- GCC
- INMETRO
Per-batch certification scope confirmed in the formal quotation. Additional regional standards available on request.
Recommended in these markets
Where buyers from these regions source this product
