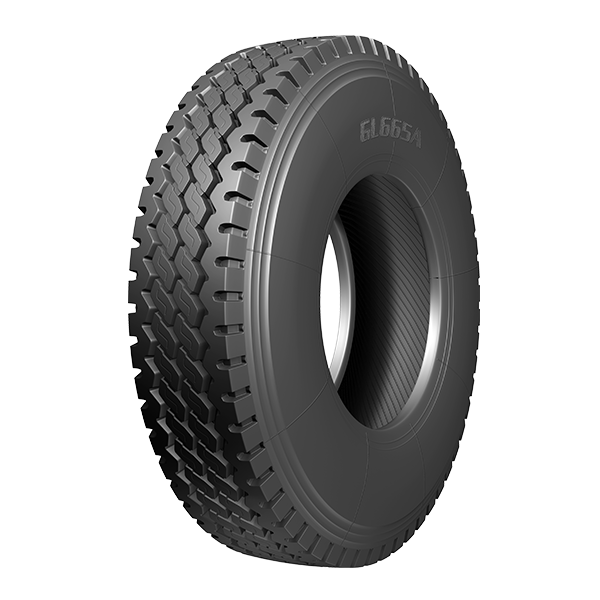

BJGL665A Industrial Tire
High load capacity. Low heat build-up. Strong all-round performance.
For faster pricing, include target market, quantity, and operating conditions in your inquiry.
Product Description
Inheriting the excellent performance of GL671A against tearing under bad conditions;
double tread structure provides a lower tire running temperature;
deeper pattern provides a longer service life;
specially designed tread pattern makes the tire has a stronger holding force;
shoulder lateral groove enhances the heat dissipation and provides a higher durability;
new tread formula achieves the best balance between wear and tear resistance.
double tread structure provides a lower tire running temperature;
deeper pattern provides a longer service life;
specially designed tread pattern makes the tire has a stronger holding force;
shoulder lateral groove enhances the heat dissipation and provides a higher durability;
new tread formula achieves the best balance between wear and tear resistance.
Specifications
Available sizes & load ratings
| Size | Ply Rating | Load Index | Speed Rating | Measuring Rim | Approved Rims | Section Width (mm) | Overall Diameter (mm) | Tread Depth (mm) | Max Load (kg) | Inflation Pressure (kPa) | Valve Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12R22.5 | 18PR | 152/149 | L | 9.00 | 8.25 | 300 | 1085 | 17 | S3550、D3250 | 930 | DR08 |
| 325/95R24 | ★★★ | 164/162 | G | 9.00 | / | 315 | 1218 | 18.8 | S5000、D4750 | 900 | / |
| 325/95R24 | 18PR | 162/160 | J | 9.00 | / | 315 | 1218 | 18.8 | S4750、D4500 | 830 | / |
| 325/95R24 | 20PR | 164/162 | G | 9.00 | / | 315 | 1218 | 18.8 | S5000、D4750 | 900 | / |
| 12.00R24 | 20PR | 160/157 | K | 8.50 | 8.50V,9.0 | 315 | 1218 | 18.8 | S4500、D4125 | 900 | DG09C |
| 12.00R24 | 18PR | 158/155 | K | 8.50 | 8.50V,9.0 | 315 | 1218 | 18.8 | S4250、D3875 | 830 | DG09C |
| 12.00R24 | ★★★ | 164/162 | J | 8.50 | 8.50V,9.0 | 315 | 1218 | 18.8 | S5000、D4750 | 900 | DG09C |
| 315/80R22.5 | 18PR | 154/151 | L | 9 | 9.75 | 312 | 1082 | 18 | S3750、D3450 | 830 | DR08 |
| 295/80R22.5 | 18PR | 152/149 | M | 9 | 8.25 | 298 | 1050 | 17.5 | S3550、D3250 | 900 | DR08 |
| 295/80R22.5 | 16PR | 150/147 | M | 9 | 8.25 | 298 | 1050 | 17.5 | S3350、D3075 | 830 | DR08 |
| 275/70R22.5 | 18PR | 148/145 | K | 8.25 | 9 | 276 | 968 | 17.5 | S3150、D2900 | 900 | DR07 |
| 13R22.5 | 18PR | 154/151 | K | 9.75 | 9 | 320 | 1124 | 17.5 | S3750、D3450 | 830 | DR08 |
| 11R22.5 | 16PR | 146/143 | M | 8.25 | 7.5 | 279 | 1054 | 17 | S3000、D2725 | 830 | DR07 |
| 11R22.5 | 14PR | 144/142 | M | 8.25 | 7.5 | 279 | 1054 | 17 | S2800、D2650 | 720 | DR07 |
All sizes available for distributor / project orders. MOQ 1×40HQ container per model. Mixed sizes within the same product family supported.
Applications
Where this tire works
- Forklift
- Reach stacker
- Container handler
- Port equipment
Certifications
Compliance scope
- CCC
- GCC
Per-batch certification scope confirmed in the formal quotation. Additional regional standards available on request.
