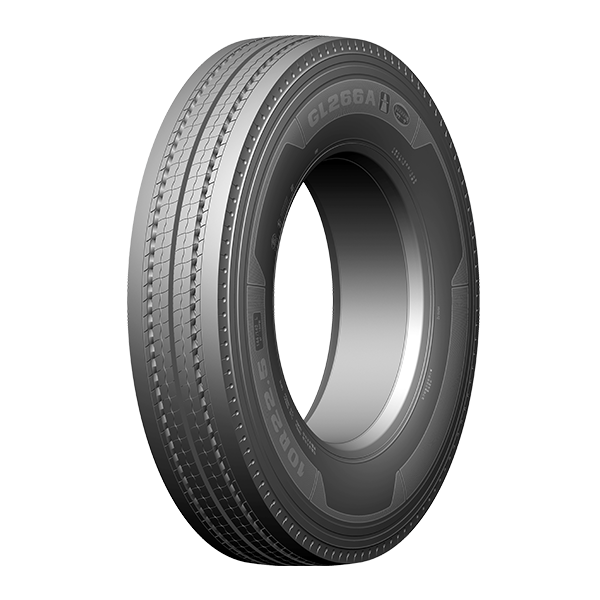

BJGL266A OTR Tire
High safety. Premium wear resistance. High ride comfort.
For faster pricing, include target market, quantity, and operating conditions in your inquiry.
Product Description
The variable groove design improves the holding power;
the variable-angle groove design reduces the probability of stone inclusion;
the intermediate groove adopts straight groove plus stone-jacking block design to reduce probability of stone inclusion while ensuring drainage;
the reasonable design of the shoulder pattern stiffness effectively reduces the abnormal wear of the shoulder;
the widened tread design greatly improves the service life;
the patented bead toe design technology solves the bead toe cracking and other bead problems.
the variable-angle groove design reduces the probability of stone inclusion;
the intermediate groove adopts straight groove plus stone-jacking block design to reduce probability of stone inclusion while ensuring drainage;
the reasonable design of the shoulder pattern stiffness effectively reduces the abnormal wear of the shoulder;
the widened tread design greatly improves the service life;
the patented bead toe design technology solves the bead toe cracking and other bead problems.
Specifications
Available sizes & load ratings
| Size | Ply Rating | Load Index | Speed Rating | Measuring Rim | Approved Rims | Section Width (mm) | Overall Diameter (mm) | Tread Depth (mm) | Max Load (kg) | Inflation Pressure (kPa) | Valve Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9R22.5 | 14PR | 136/134 | M | 6.75 | 6.00,7.50 | 229 | 974 | 15 | S2240、D2120 | 830 | DR06 |
| 8R22.5 | 14PR | 130/128 | L | 6.00 | 5.25,6.75 | 203 | 935 | 14.2 | S1900、D1800 | 830 | CJ05 |
| 10R22.5 | 16PR | 144/142 | L | 7.50 | 6.75 | 254 | 1019 | 15 | S2800、D2650 | 900 | DR06 |
| 10R22.5 | 14PR | 141/139 | M | 7.50 | 6.75 | 254 | 1019 | 15 | S2575、D2430 | 790 | DR06 |
All sizes available for distributor / project orders. MOQ 1×40HQ container per model. Mixed sizes within the same product family supported.
Applications
Where this tire works
- Mining
- Quarry
- Loader / dozer
- Heavy earthmoving
Certifications
Compliance scope
- DOT
- GCC
- INMETRO
- CCC
Per-batch certification scope confirmed in the formal quotation. Additional regional standards available on request.
